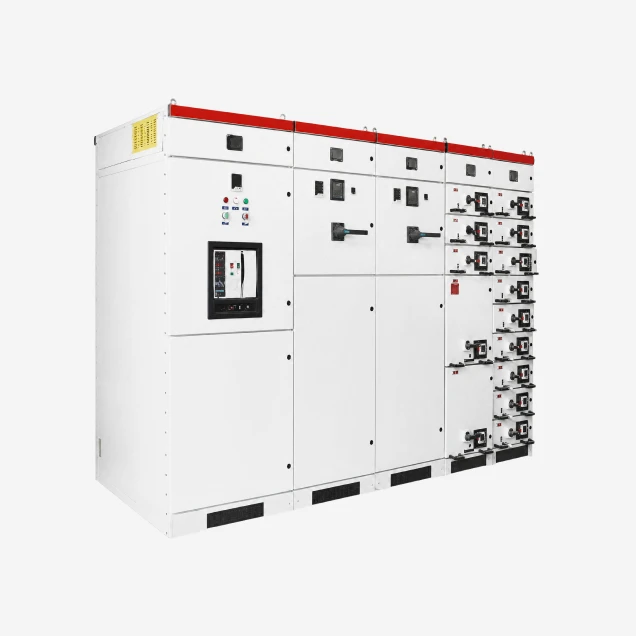

Integrated Power Center (PC) and Motor Control Center (MCC) Architecture
This premium withdrawable electrical switchgear platform seamlessly synthesizes the rigorous demands of power conversion distribution loops and advanced motor management into a single, cohesive framing structure. Engineered to support extensive high-load processes, it controls electric motor capacities up to 320kW, serving as the localized automation brain for major pumping operations, material conveyors, and cooling grids. The architecture allows a flexible mix of high-amperage fixed components alongside quick-swap withdrawable motor control blocks, meeting specialized industrial single-line diagram objectives with extreme spatial economy.
Advanced Mechanical Interlocking & Multi-Compartment Physical Isolation
Operator safety under load conditions is enforced through severe structural zoning inside the electrical switchgear cabinet. The cabinet layout introduces distinct internal isolation boundaries that separate the main busbars, withdrawable functional units, and outward field cable junctions behind high-strength, flame-retardant barriers. Crucially, every individual drawer circuit is governed by a mechanical interlocking system. This ensures the drawout drawer can only move when the circuit breaker is fully tripped, featuring defined Connected, Test, and Disconnected locking slots to eliminate flashover risks during field maintenance.
High Thermal Stability Framed with Modulated Structural Components
The core structure of this low voltage electrical assembly relies on specialized modular structural frames engineered with standard E=25mm spacing matrices. This precision engineering enables effortless configuration changes and components mounting without drilling or welding. Under heavy electrical stress, the main horizontal busbar assembly achieves an extreme peak withstand current rating up to 176 kA and a short-time withstand current up to 80 kA for 1 second. This dynamic thermal rigidity anchors internal parts firmly against devastating electromagnetic warping forces during systemic external grid faults.
Strict Ingress Control and Ambient Weather Adaptation
Built for prolonged service in demanding dust-prone and high-temperature environments like manufacturing plants and mining sectors, the switchgear enclosure achieves a verified IP40 protection rating. The structural sections feature optimized passive ventilation passages that avoid dust gathering while providing ideal thermal extraction for internal circuits. It operates efficiently within surrounding air bounds of -5°C to +40°C, under ambient relative humidity thresholds up to 90% at lower temperatures, and supports high altitudinal grid operations reaching up to 2000m without thermal clearance derating.
