Standards and Verified Performance

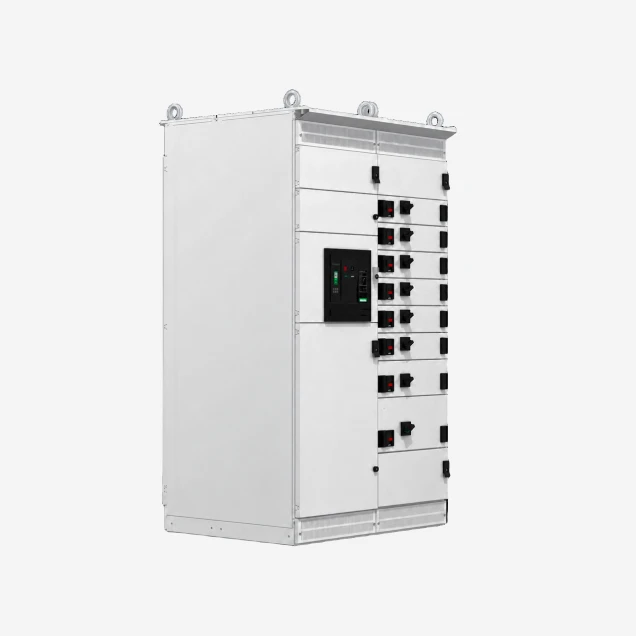

Every STELLAR intelligent low voltage switchgear panel is designed and type-tested to IEC 61439-2 and GB/T 7251.2-2023. Verification includes short-time withstand at 150kA, internal arc containment at 100kA for 0.5 seconds, dielectric strength at 12kV impulse and EMC compliance. The assembly holds a nuclear-grade (Class 1E) seismic qualification, allowing it to remain mechanically intact and electrically operational through the seismic loading required for nuclear auxiliary power systems, safety-related balance-of-plant equipment and switchgear installed in high seismic-risk zones.
Pluggable Fish-Shape Busbar for Tool-Free Coupling
The horizontal main busbar uses a pluggable fish-shape (interlocking) profile that couples between adjacent cabinets by sliding one section into the next — no through-drilling, no calibrated torque bolts at the joint. The fish-shape geometry keeps the contact area constant across thermal cycles, so long busbar runs stay within IEC temperature-rise limits after years of service. Compared with conventional flat-bar bolted joints, site coupling time on a multi-cabinet line-up drops by more than half, and joint performance no longer depends on installer torque discipline.
Dual-Clamp Contact System
Functional units connect to the vertical distribution busbar through a dual-clamp contact head made from a self-compensating alloy. Clamping force rises with load current, so contact resistance stays stable through high current transients. Insertion and withdrawal action occurs at the clamp head itself, leaving the vertical busbar surface free from mechanical wear after thousands of drawer operations. This preserves the busbar plating integrity over the full operational life of the panel.
Single-Section 10×40 Standardised Busbar System
The entire busbar system uses one copper profile: 10 × 40 mm. Current rating is set by the number of bars stacked in parallel, not by profile changes. A single-bar horizontal busbar reaches 4000A; the double-bar arrangement reaches 7300A. This standardisation reduces the spare-parts inventory across a fleet of installations to a single busbar SKU, and lets an existing panel be upgraded to higher current by adding a second bar during a scheduled outage — a documented factory procedure with matched-torque hardware kits.
Direct-Arranged Insulation Grille (IP20 Live-Zone Barrier)
Ahead of the vertical distribution busbar sits a red IP20-rated insulation grille that marks the live zone visually and physically prevents accidental contact when a drawer is withdrawn. The inserted dual-clamp head is also covered by an insulation shroud, so live parts remain enclosed even during a partial drawer extraction. Operators can perform routine drawer changes and cleaning tasks without de-energising the busbar system.
Detachable Top Beam and Integrated Transport Plinth
The cabinet top beam is bolt-mounted and can be removed for site coupling of adjacent cabinets, so the horizontal busbar spans multiple panels without lifting or dismantling the cabinet tops. Each cabinet ships with an integrated transport plinth at the base — a rolling and jacking interface that lets the panel be moved into position using pallet jacks or crane straps without an additional handling frame. On retrofit projects with limited rigging space, this saves both time and lifting equipment cost.
Environmental Verification and Applications
The assembly is verified for design altitudes up to 4000m (with air-density derating applied to dielectric clearances and current ratings), 192-hour salt spray exposure, and pollution degree 3 indoor environments. Applications include nuclear power auxiliary distribution, hyperscale data center power rooms, high-altitude and remote grid substations, rail transit traction systems, port and offshore facilities, and heavy process industry. The 7300A double-bar horizontal busbar and 150kA short-time withstand make this the natural fit for main incomer switchgear on projects where a single-bar 6300A panel would be under-rated.
